Montvfieto 4-Port Firewall

For a firewall, all three chips do the same job. They share four Gracemont efficiency cores, 6MB of cache, a 6W TDP and a single memory channel. The Twin Lake parts simply clock higher, which adds a little headroom for VPN and IDS without changing heat or power in any meaningful way.

The graphics also differ slightly: Twin Lake raises the integrated GPU clock. On a headless router that matters only if the box later becomes a media player, where the N100's own Quick Sync engine already decodes 4K HEVC and VP9 without strain.

• No drawback if the box arrives with a Twin Lake chip; routing gets marginally faster.
• One reason to care: matching a second box exactly for a high-availability pair.
• One thing to do: update the BIOS first, since firmware must know the chip it runs.

Ask Montvfieto what pre-installation includes, since the standard box has no drive to install onto. If it supplies the memory and SSD as part of the service, the box becomes a configured router. If not, you send the parts or install yourself.

1. Fit one DDR5 SO-DIMM: 8GB for a dedicated firewall, 16GB if IDS or containers will run.
2. Fit an M.2 NVMe drive; a small one is plenty for a router.
3. Write the OPNsense or pfSense installer to a USB stick and boot from it.
4. Assign WAN and LAN to two of the i226-V ports, then finish setup in the web interface.
5. Enable automatic power-on in the BIOS so the router restarts after an outage.

The supported list is broad: OPNsense, pfSense, OpenWrt, Linux, Windows 11 and TrueNAS. That range reflects Intel NICs on a standard x86 board more than anything special, since the i226-V runs on FreeBSD's native igc driver and Linux's igc module alike.

A current installer matters. Older firewall releases predate solid i226-V support and may miss ports, so start from the newest image either project offers. Layout ideas for four-port routers sit under N100 firewall mini PCs.

Keep the installer stick afterwards. A router rebuilt from a saved configuration file and a fresh image is back online in minutes, and that fast recovery is why config export belongs on any firewall OS you run.

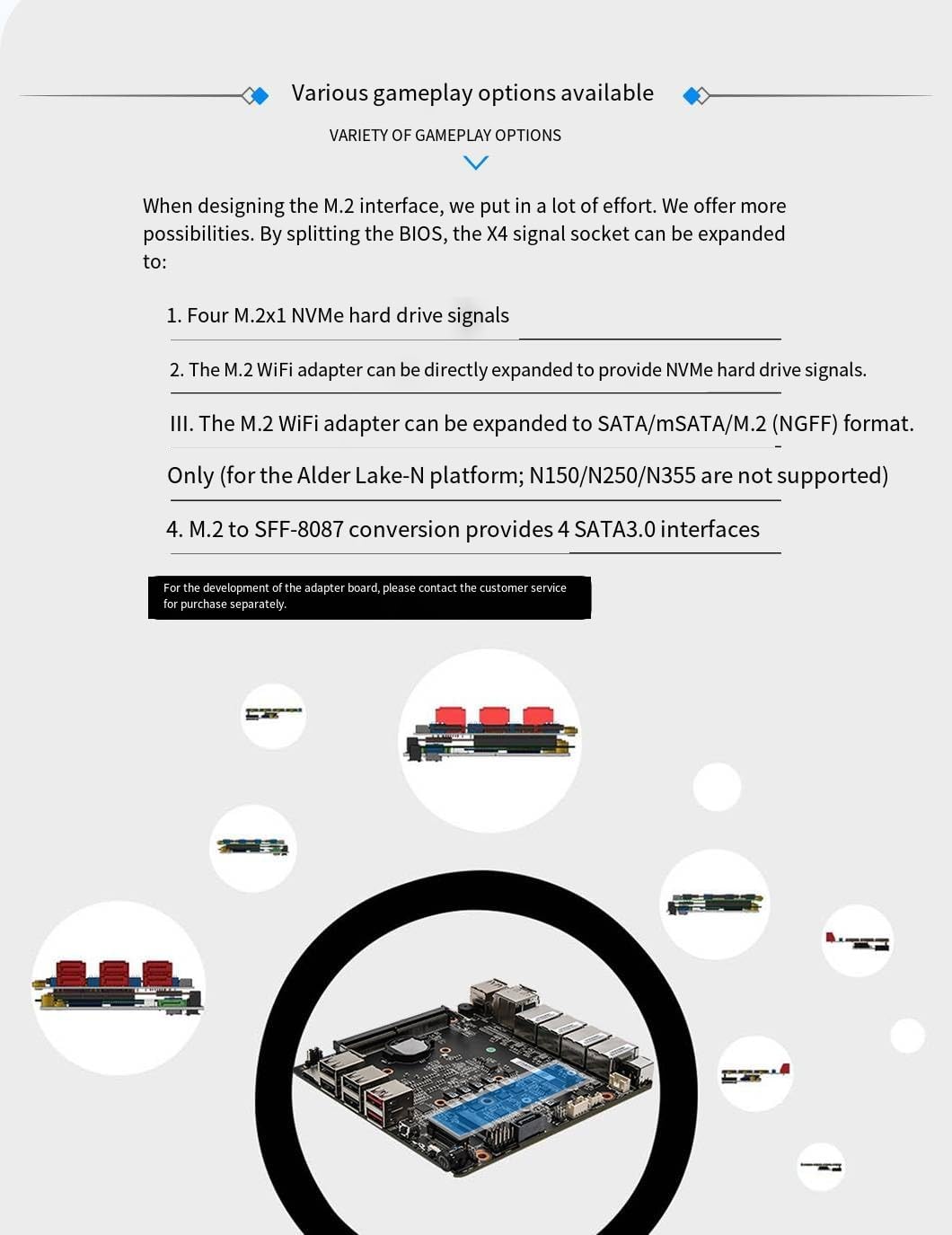

How the four-drive figure is reached depends on slots and adapters that Montvfieto does not itemise, so ask before planning a four-drive pool. Two drives are the dependable baseline for a mirrored boot pool on OPNsense or Proxmox.

• Two NVMe drives: a ZFS mirror for the router OS.
• SATA drive: a 2.5-inch SSD or HDD for backups or media.
• More NVMe: only after confirming the adapter route.

Running TrueNAS and a firewall on one small box is possible but asks a lot of four efficiency cores and one memory channel. ZFS likes memory, and the N100 platform runs a single DDR5 channel, so fit 16GB or more if storage is a real job here. The trade-offs of combining roles are covered under N100 home servers.

Eight USB ports help the storage role too: an external backup drive, a UPS signal cable and a keyboard can all stay plugged in. HDMI and DisplayPort drive two displays for install and rescue work.

Passive cooling keeps the box silent. A busy ZFS pool and a router under load warm a fanless case noticeably, so give it clear air and keep it off the top of a hot modem. Heat behaviour in passive boxes is covered under fanless N100 mini PCs.

Multi-WAN means two internet lines with failover or load balancing. Segmentation means separate networks for main, guest and IoT devices, so a cheap camera cannot see your laptop. Aggregation bonds two ports to a switch for more combined throughput, though any single transfer still tops out at 2.5Gbit/s.

A common four-port plan uses port one for the ISP, port two for the main LAN, port three for a guest and IoT segment, and port four for a second WAN or a DMZ. VLANs on the LAN port can carry further networks to a managed switch when four physical ports run out.

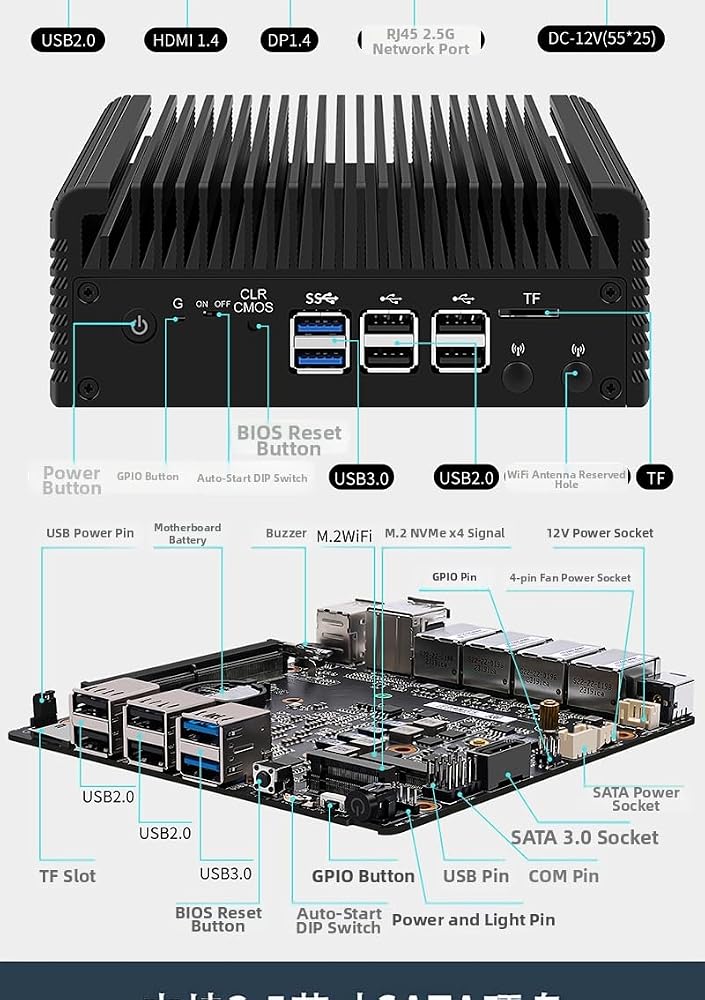

The oaknode four-port matches this layout almost line for line and names the N100 plainly, with a 48GB memory rating, an included SATA cable and a fan header. The Dozlzyp X4C-XL offers TPM 2.0 and serial-console builds in a larger case.

• Pick Montvfieto for OS pre-installation and a TrueNAS-friendly storage layout.
• Pick oaknode for the most clearly stated specifications in this layout.
• Pick CWWK if you want memory and NVMe fitted at the factory.

Three decisions come with the barebone: confirm the processor, choose pre-installed or blank, and add a DDR5 SO-DIMM plus at least one NVMe drive. Idle power on four-port boxes climbs with every linked port; hedged ranges are under N100 power consumption.
